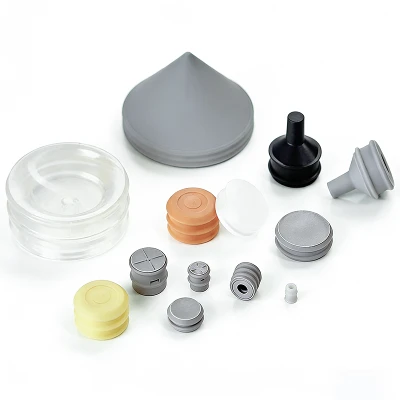

Customized Silicone Syringe Plunger - Precision Medical Cheebtsam rau Kev xa tshuaj zoo heev
Txheej txheem cej luam
Customized Silicone Syringe Plungersyog engineered kws tshuaj raws li cov kev cai tshwj xeeb rau kev txhaj tshuaj tshuab, prefilled syringes, thiab advanced cov khoom xa tuaj. Peb cov kev cai silicone plungers muab kev kho mob- cov ntaub ntawv qib nrog precision manufacturing kom xa cov kev ua tau zoo sealing zoo, cov yam ntxwv zoo ib yam, thiab ua tiav kev sib raug zoo nrog koj cov kev cai tsim tshwj xeeb.
Txawm hais tias koj xav tau qhov tshwj xeeb qhov ntev, qhov tshwj xeeb hardness profiles, kev kho deg kev kho mob, los yog cov ntaub ntawv tsim tawm, peb pab neeg ua haujlwm engineering ua haujlwm koom tes nrog cov kws tsim khoom lag luam los tsim thiab tsim cov silicone syringe plungers uas ua tau raws li cov lus qhia meej thaum tswj kev ua raws cai nruj.
Vim li cas thiaj xaiv Customized Silicone Plungers?
✯ Txiav qhov ntev rau kev tsim cov koob txhaj tshuaj
✯ Optimized material formulations for drug compatibility
✯ Kev cai hardness profiles rau kev txhaj tshuaj quab yuam tshwj xeeb
✯ Cov kev kho mob tshwj xeeb rau kev txhim kho kev ua tau zoo
Customization Muaj peev xwm
Dimensional Customization
Txoj kab uas hla
Kev cai sab nraud diameters los ntawm 3mm mus rau 60mm kom phim ib lub syringe chim specification. Precision kam rau ua: ± 0.01-0.02mm
Ntev & Profile
Customized plunger ntev, tav qhov siab, rib spacing, thiab sealing di ncauj geometry optimized rau koj daim ntawv thov
Sealing Design
Ib leeg-rib, ob npaug-rib, triple-rib, lossis multi-theem sealing configurations raws li qhov yuav tsum tau ua
Tshwj xeeb nta
Kev cai sab hauv geometries, txuas mechanisms, integrated Cheebtsam, los yog cov yam ntxwv yam ntxwv
Cov txheej txheem txheej txheem
| Hom Silicone | Hardness Range (Shore A) | Cov yam ntxwv tseem ceeb | Ideal Applications |
|---|---|---|---|
| Medical LSR | 30 – 50 | Mos, yoog raws, zoo heev biocompatibility | Tsawg- cov ntawv thov siab, cov qauv tsim nyog |
| Standard Medical Silicone | 50 – 60 | Balanced zog, ntau yam kev ua tau zoo | General - lub hom phiaj syringes, prefilled systems |
| Kev Kho Mob Silicone | 60 – 70 | Siab compression kuj, zoo sealing | High -cov ntawv thov siab, cov tshuaj viscous |
| Ultra{0}}Silicone ruaj khov | 70 – 80 | Maximum structural kev ncaj ncees, superior durability | Cov cuab yeej tshwj xeeb, cov xwm txheej hnyav |
| Proprietary Blends | Kev cai | Cov qauv tsim tshwj xeeb rau cov kev xav tau tshwj xeeb | Cov tshuaj sib txawv tshwj xeeb xav tau, kev tiv thaiv IP |
💡 Kev Sib Tham Txog Kev Xaiv Khoom:Peb cov kws tshawb fawb cov ntaub ntawv muab cov kws tshaj lij kev taw qhia txog kev xaiv cov tshuaj silicone zoo raws li koj cov tshuaj pH, tshuaj muaj pes tsawg leeg, kev cia khoom, thiab kev tswj hwm txoj hauv kev.Muaj kev sab laj kev paub pub dawb.
Kev kho deg & txheej txheej xaiv
| Hom Kev Kho Mob | Cov txiaj ntsig kev ua haujlwm | Pom zoo rau |
|---|---|---|
| PTFE txheej | Ultra{0}}coefficient ntawm kev sib txhuam (μ < 0.1), tshuaj inertness, zoo ib yam glide | Prefilled syringes, siab -precision dosing, viscous formulations, biologic tshuaj |
| Silicone Roj (Cua) | Lub lubrication ruaj khov, tsis muaj kev txhawj xeeb txog kev tsiv teb tsaws, autoclave ruaj khov, kev txhaj tshuaj du | Sterilized systems, ntev - khaws cia, preservative - tshuaj dawb |
| Silicone Roj (Tshooj) | Kho cov qib lubrication, tus nqi - zoo, muaj tam sim ntawd | Standard syringes pov tseg, siab - ntim ntau lawm, kev siv dav dav |
| Kev Kho Mob Plasma | Hloov lub zog saum npoo, txhim kho wettability, txhim kho kev sib raug zoo | Aqueous formulations, tshuaj hydrophilic, tshwj xeeb yuav tsum tau |
| Kev Cai Txheej Txheej | Tsim cov khoom siv rau qhov tshwj xeeb | Proprietary formulations, tshwj xeeb daim ntawv thov, kev tshawb fawb tej yaam num |
| Uncoated (Natural) | Zero additive contamination, siab tshaj biocompatibility | Preservative - tshuaj dawb, rhiab biologics, kev cai nyiam |
Technical Specifications
| Khoom | Specification |
| Khoom siv hauv paus | Kev kho mob - qib silicone elastomers (LSR, HCR, VMQ) |
| Hardness Customization | Ntug A 30-80 (± 2 Ntug A kam rau ua) |
| Txoj kab uas hla | 3mm - 60mm (qhov ntau thiab tsawg muaj) |
| Ntev Ntau | 5mm - 150mm (daim ntawv thov- tshwj xeeb) |
| Dimensional kam rau ua | ± 0.01mm txog ± 0.02mm (nyob ntawm cov duab geometry) |
| Xim xaiv | Ntuj (translucent), dawb, dub, kev cai Pantone xim |
| Biocompatibility | ISO 10993, USP Class VI ua raws |
| Sterilization Compatibility | Gamma, EtO, autoclave (cov ntaub ntawv -dependent) |
| Extractables Profile | Tsawg extractables formulations muaj |
| Manufacturing Ib puag ncig | ISO Class 7 chav huv |
Txoj kev tsim kho kev cai
Kev Ntsuam Xyuas Kev Xav Tau
Qhia koj cov koob txhaj tshuaj tshwj xeeb, cov ntsiab lus ntawm kev tsim tshuaj, cov kev xav tau ntawm kev ua haujlwm, thiab kev tswj hwm kev xav tau. NDA muaj nyob rau thaum thov.
Tsim & Engineering
Peb cov engineers tsim CAD tsim, xaiv cov ntaub ntawv zoo, thiab tsim cov ncauj lus kom ntxaws. Kev tshuaj xyuas tsim qauv hauv 3-5 hnub ua haujlwm.
Pwm Fabrication
Precision pwm tsim siv CNC machining thiab EDM tshuab. Lub sij hawm xa tuaj: 4-6 lub lis piam. Thawj tsab ntawv tshuaj xyuas muab.
Prototype Production
Kev tsim khoom pib ua haujlwm rau kev kuaj xyuas qhov tseeb. Ua kom tiav qhov ntsuas qhov ntsuas thiab cov ntaub ntawv ntsuas kev ua tau zoo suav nrog.
Kev xeem & validation
Kev sim ua tiav suav nrog kev txheeb xyuas qhov loj me, kev tsom xam lub zog glide, kev kuaj cov dej xau, thiab kev tshawb fawb txog kev sib raug zoo. ISO 10993 kev xeem muaj.
Kev tsim khoom loj
Validated ntau lawm nrog 100% automated soj ntsuam, tag nrho batch traceability, thiab ua tiav cov ntaub ntawv pob. Ntsuas los ntawm txhiab mus rau lab.
Quality Assurance & Testing
Hauv -Kev Ntsuas Hauv Tsev
Kev ntsuas qhov ntev
CMM ntsuas, kho qhov muag, tshuaj xyuas qhov profile
Kev txheeb xyuas cov khoom
Kev ntsuam xyuas hardness, tensile zog, compression set, aging kev tshawb fawb
Kev Ntsuas Kev Ua Haujlwm
Glide quab yuam ntsuas, breakout quab yuam, extrusion quab yuam sib xws
Kev ntsuam xyuas dej
Siab lwj, kuaj lub tshuab nqus tsev, ntev - lub sij hawm sealing validation
Kev Ntsuas Kev Ntsuas
Kev tshawb fawb txog tshuaj sib cuam tshuam, extractables & leachables tsom xam
Biocompatibility
Kev xeem ISO 10993, USP Class VI certification muaj
Cov Ntawv Pov Thawj Zoo & Kev Ua Raws Cai
- ISO 9001: 2015Quality Management System certified manufacturing
- ISO 13485 Kev Tswj Xyuas Kev Lag LuamMedical Device Quality Management (muaj rau cov haujlwm kho mob)
- Kev them nyiaj yug FDA DMFDrug Master Cov ntaub ntawv kev pabcuam
- RoHS & REACHEuropean kev cai ua raws cai
- Chav tsev tsim khoomISO Class 7 (10,000) ib puag ncig
-
Piv txwv daim ntawv thov
| Kev lag luam sector | Hom ntawv thov | Kev Cai Lij Choj |
|---|---|---|
| Pharmaceutical | Prefilled syringes rau biologics (monoclonal antibodies, tshuaj tiv thaiv, insulin) | Tsawg extractables silicone, PTFE txheej, siab precision qhov ntev |
| Biotechnology | Auto-injector systems, cwj mem injectors rau kev tswj kab mob ntev | Kev cai hardness rau kev txhaj tshuaj zoo ib yam, tshwj xeeb kev kho deg |
| Veterinary | Loj -Volume syringes (10ml-60ml) rau cov tsiaj txhu thiab cov tsiaj ua ke | Kev ruaj khov silicone rau cov tshuaj viscous, nqi -kev tsim kho kom zoo |
| Kev kho hniav | Tshuaj loog cartridges, tshwj xeeb txhaj tshuab | Qhov me me, autoclave- cov ntaub ntawv ruaj khov |
| Laboratory | Kev tshawb fawb cov koob txhaj tshuaj, cov cuab yeej tshuaj ntsuam xyuas, cov khoom siv ua kua | Tshuaj tsis kam, precision dosing, kev cai xim rau kev txheeb xyuas |
| Tshuaj kho mob xwm txheej ceev | Ua ntej-cov tshuaj kho mob xwm txheej ceev (epinephrine, naloxone) | Ntxiv txee-cov ntaub ntawv lub neej, txhim khu kev qha kev ua tau zoo nyob rau hauv kev cia siab |
🔍 Case Study: Custom Plunger for Biologic Drug Delivery
Kev sib tw:Lub tuam txhab kws tshuaj xav tau kev cai silicone plungers rau 2.25ml prefilled syringe uas muaj siab -concentration monoclonal antibody nrog rau cov pH thiab viscosity tshwj xeeb.
Kev daws:Peb tau tsim ib qho khoom siv qis-extractables silicone formulation nrog Shore A 55 hardness, siv PTFE txheej mus tas li, thiab tsim ib triple -rib sealing geometry optimized rau lawv chim qhov ntev.
Qhov tshwm sim:Ua tau raws li 10-12N txhaj tshuaj, xoom xau tshaj 24-hli lub txee lub neej, thiab dhau ISO 10993 biocompatibility kuaj. Tam sim no nyob rau hauv kev lag luam ntau lawm ntawm 2 lab units ib hlis.
Ordering Information
📦 Ntim & Shipping Options
Txheem Ntim
- Muab ob npaug rau- txheej PE hnab huv huv
- Tiv thaiv cartons nrog ua npuas ncauj inserts
- Palletized rau kev xa khoom ntau
- Batch ntawv nrog tag nrho traceability
Ntim Ntim
- Cov hnab ntim ib leeg
- Thermoformed tais rau automation
- Nqus -cov hnab ntim khoom kaw
- Cov neeg siv khoom - tshwj xeeb daim ntawv lo
- Sterilized ntim (gamma / EtO)
| Shipping Paub meej | Cov ntaub ntawv |
|---|---|
| Chaw nres nkoj shipping | Xiamen, Suav teb (cua thiab hiav txwv freight xaiv) |
| Muaj Txoj Kev | Qhia (DHL, FedEx, UPS, TNT), Cua Freight, Hiav txwv Freight (FCL / LCL) |
| Cov ntsiab lus ua lag luam | FOB, CIF, DDP, EXW (kev npaj hloov tau) |
| Cov ntaub ntawv | Kev lag luam invoice, packing list, CoA, MSDS, daim ntawv pov thawj ntawm kev ua raws cai |
Vim Li Cas Xaiv Qhov Zoo Tshaj Plaws rau Kev Cai Silicone Plungers?
Xiamen Qhov Zoo Tshaj Plaws Imp. & Exp. Co., Ltd.yog lub chaw tsim khoom ntawm precision-engineered silicone Cheebtsam rau kev lag luam kws tshuaj thiab kev kho mob, nrog ntau tshaj 20 xyoo ntawm kev tshwj xeeb hauv kev kho mob elastomer kev daws teeb meem.
Cov lus nug nquag
Q: Qhov ntau thiab tsawg ntawm syringe pistons koj tuaj yeem tsim khoom?
A: Peb tsim kev cai pistons rau txhua tus qauv syringe ntau thiab tsawg los ntawm 1ml txog 60ml nrog ± 0.02mm kam rau ua. Xa koj cov duab kos duab rau cov lus hais meej hauv 24 teev.
Q: Koj puas muab cov ntaub ntawv kuaj biocompatibility?
A: Yog. ISO 10993 thiab USP Chav Kawm VI biocompatibility kuaj cov ntaub ntawv muaj nyob rau hauv qhov kev thov los txhawb koj cov kev cai xa ntawv (FDA, EMA, thiab lwm yam).
Q: Koj puas tuaj yeem muab cov pistons sterilized npaj -rau- siv?
A: Yog. Peb muab gamma-sterilized (25–50 kGy) pistons nyob rau hauv huv chav ntim, npaj rau aseptic filling kab. Lub sij hawm xa tuaj: ntxiv 2-3 lub lis piam rau kev tsim khoom.
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: Muajtsis muaj MOQ. Peb txhawb kev txiav tximlos ntawm 1 daim, suav nrog cov qauv, R & D kuaj, thiab ntau lawm. Tus nqi yog nyob ntawm specifications thiab yuav tsum tau.
Q: Koj puas tuaj yeem tsim cov qauv kev cai?
A: Yog. Peb pab neeg R & D tshwj xeeb hauv kev cai elastomer formulations rau cov tshuaj sib raug zoo, tshwj xeeb hardness yuav tsum, los yog tshwj xeeb kev ua tau zoo yam ntxwv.
📞 Hu rau peb hnub no
Xiamen Qhov Zoo Tshaj Plaws Imp. & Exp. Co., Ltd.
📍 Chaw nyob:Unit 522-525, Gaodian Road 6#, Huli District, Xiamen, Suav teb
☎️ Tel: +86-592-5782315
📱 Mobile/WhatsApp: +86 189 5015 9396
📧 Email:yunying2@bestsealhk.com
Cov khoom siv pub dawb • 24-teev nqe lus • Cov kev daws teeb meem kev cai • OEM / ODM Kev Pabcuam
Cim npe nrov: Tuam Tshoj customized silicone syringe plungers lwm tus neeg, manufacturers, hoobkas
